6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness

Product Categories
Guangzhou Wintai Car Tools Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness

Place of Origin : Guangdong, China

Brand Name : wintai

Model Number : 6000

Packaging Details : standard export package

Supply Ability : 1000 Set/Sets per Month

MOQ : 2 sets

Price : $1,050.00/sets >=2 sets

Certification : CE

Payment Terms : L/C, D/A, T/T, D/P

Delivery Time : 15

Weight : 545lbs

Bench Height : 40cm - 118cm

Max. Lifting Capacity : 6000lbs

Worktable Length : 168cm - 675cm

Worktable Width : 40cm - 105cm

Warranty : 12 Months

lifting capacity : 6000lbs

Two hydraulic rams : 2*12 ton

Adjustable Length : 168cm - 675cm

Adjustable Width : 40cm - 105cm

Adjustable Height : 40cm - 118cm

Steel thickness : 3.5mm/5mm

Port : Guangzhou/Shenzhen

Contact Now

Product Description

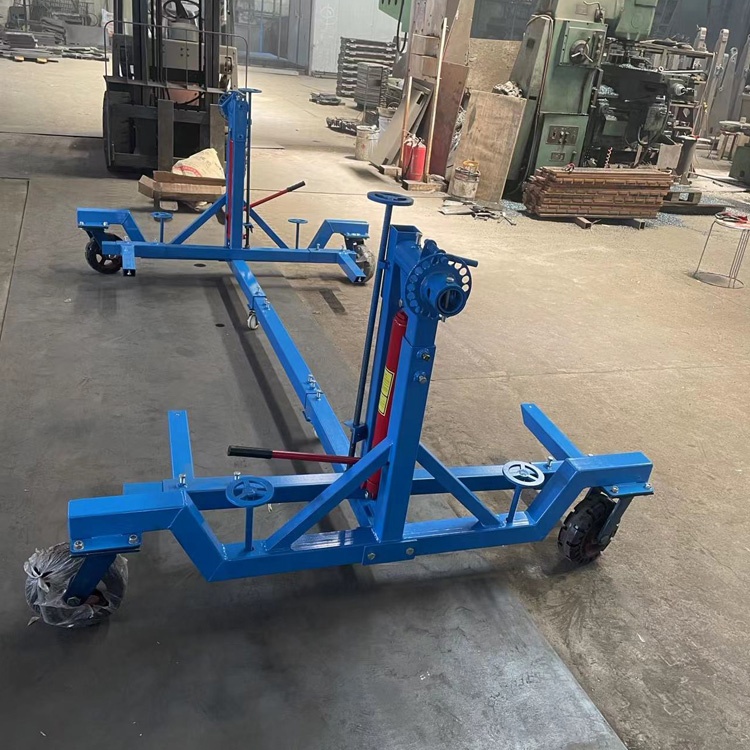

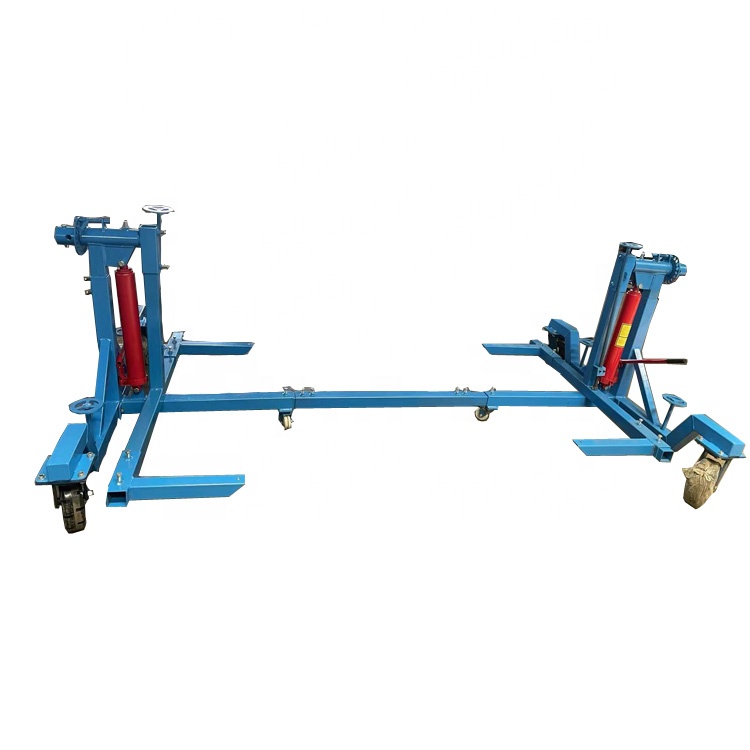

car body painting tool Car Rotisserie vehicle body painting frame

1. Solid body frame
The body frame is made of high quality square tube, meet USA ASTM standard. Can bear 345 Mpa. There is two structures optional,one is straight leg, another is bent leg.All steel construction, the auto car body rotisserie is for restore car or truck body or frame. It allows 360° of rotation with two spring loaded positioning pins, giving easy access body work such as paint removal, painting, welding, sandblasting or any other works.
2. Unique 5.0mm steel thickness
The square tube steel thickness has 3.5mm and 5.0mm two thickness. Usually standard thickness is 5.0mm
3. Hydraulic ram meet CE standard,
High quality hydraulic ram meet standard of CE.
4. High precision.
Use plasma cutting machine to cut the material, and CNC turret punch press to drill hole, high precision, control deviation in 0.3mm
5. Nitrogen gas welding
Use nitrogen gas for welding, it will make body stronger than CO2 welding.
6. Durable powder-coat finish
All car rotisseries feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are
washed in our 5-stage phosphate tanks that can accommodate parts up to 25' long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing
process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electro statically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder “sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes.
7. High quality caster.
Different type caster for suitable model, solid caster, rubber caster and big size rubber caster. Built with 6 swivel solid castors and allow you to remove the car rotisserie easier.
6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness
6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness
6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness
6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness
Parameters:
Item: 6000
Lifting Capacity 6000lbs
Two hydraulic rams 2*12 ton
Adjustable Length 168cm - 675cm,suit to body size 120cm - 600cm
Adjustable Width 40cm - 105cm
Adjustable Height 40cm - 118cm
Caster: 6 casters in total,4 big rubber casters(diameter 300mm/11.8”),2 small solid casters.
Steel thickness: 3.5mm/5mm(0.14”/0.2”)
Machine weight(Net weight): 247kg/545lbs
Gross wight: 297kg/645lbs
Specification
item
value
Weight
545lbs
Bench Height
40cm - 118cm
Max. Lifting Capacity
6000lbs
Worktable Length
168cm - 675cm
Worktable Width
40cm - 105cm
Place of Origin
China
Guangdong
Brand Name
wintai
Model Number
6000
Warranty
12Months
lifting capacity
6000lbs
Two hydraulic rams
2*12 ton
Adjustable Length
168cm - 675cm
Adjustable Width
40cm - 105cm
Adjustable Height
40cm - 118cm
Steel thickness
3.5mm/5mm

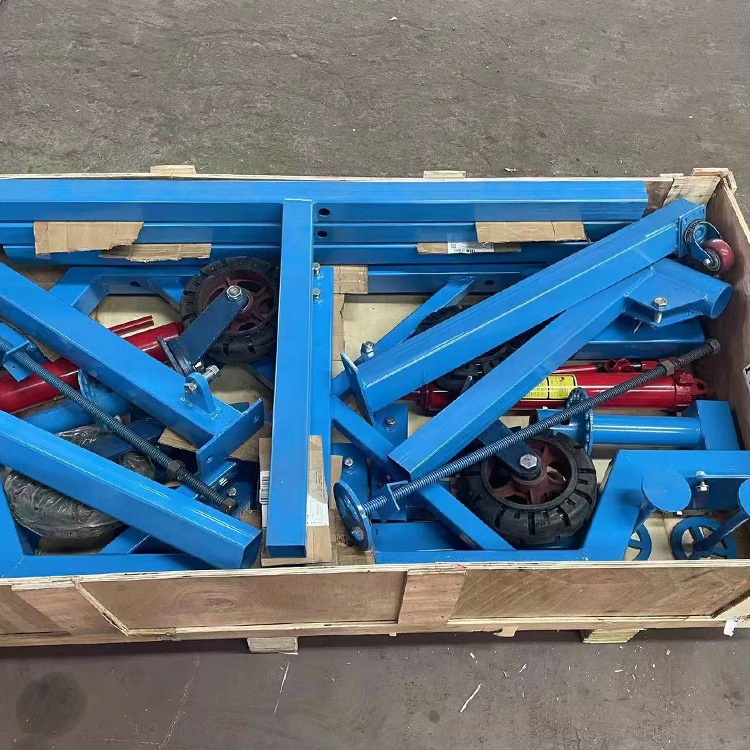

Packing & Delivery
6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness
6000lbs Lifting Capacity 2*12 Ton Car Body Panel Stands 5.0mm Steel Thickness
standard export package
